Home » Hospital Beds » ICU Bed Mechanically

ICU Bed Mechanically

Our range of mechanically operated intensive care unit beds provide adjustment through separate screw levers for obtaining backrest, TB/RTB, knee-rest and hi-low positions.

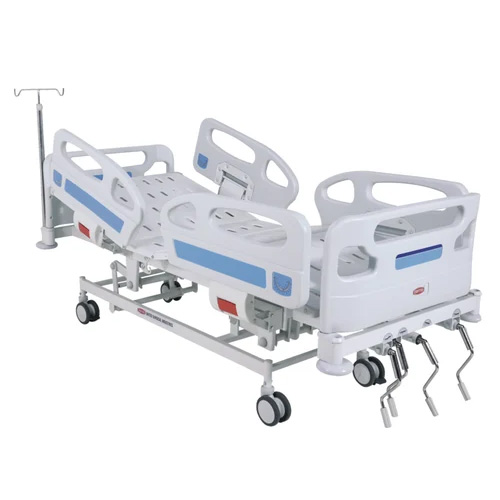

USI-943 ICU Bed Manual

ICU Bed Manual

Code : USI-943

Description :
  • PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  • PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
  • Framework made-up of M.S. Tubes.
  • 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  • Bed Mounted on 125mm (5”) Diagonal Locking Castors.
  • S.S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
  • Urine Bag Holder on Both Sides.
  • Calf Elevation Manually Operated.
  • Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
  • Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.) :
  • Overall Size: 2160L x 1070W x 610 – 750H mm.
  • Angle of Back Section: 75°
  • Angle of Knee Section: 30°
  • Angle of Trendelenburg / Reverse Trendelenburg: 5° / 6°

Optional Accessories :
  • 4 Section Mattress (USI – 5001C)
Specifications :
Minimum Order Quantity5 Piece
MaterialMild steel
Bed Function5 function
Dimensions2240X1020 MM
ColorRAL GREY
BrandUNITED
ManufacturerUNITED SURGICAL INDUSTRIES

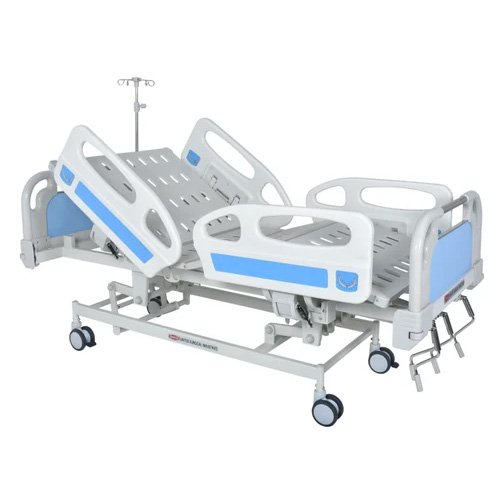

USI-943H ICU Bed Manual

ICU Bed Manual

Code : USI-943H

Description :
  • Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  • PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
  • Framework made-up of M.S. Tubes.
  • 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  • Bed Mounted on 125mm (5”) Diagonal Locking Castors.
  • S.S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
  • Urine Bag Holder on Both Sides.
  • Calf Elevation Manually Operated.
  • Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest,Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
  • Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.) :
  • Overall Size: 2160L x 1070W x 610 – 750H mm.
  • Angle of Back Section: 75°
  • Angle of Knee Section: 30°
  • Angle of Trendelenburg / Reverse Trendelenburg: 5° / 6°

Optional Accessories :
  • 4 Section Mattress (USI – 5001C)
Specifications :
Minimum Order Quantity10 Piece
Operating Type / Automation GradeManual
Bed Function5 function
Bed TypeICU
Size/Dimension2160L x 1070W x 610-750H mm
Frame MaterialMild Steel
ElevationHead and Leg Both Side
Wheels availableYes
Usage/ApplicationHospitals
Load Capacity135 kg
FeaturesBackrest & kneerest adjustable
FinishEpoxy Powder Coated
Minimum Order Quantity10
Bed available on RentNo
Reverse Trendelenburg Deg5
Trendelenburg6
Optional Accessories At CostMattress
BrandUnited
Wheel RotationYes
ShapeNA
Production Capacity500 Per month
Maximum Height610-750 mm
Delivery TimeAs per quantity
Lcd DisplayNA
Mattress availableYes
I Deal InNew Only
With Urine HookYes
WeightNA
Castor Locking SystemYES
Country of OriginMade in India

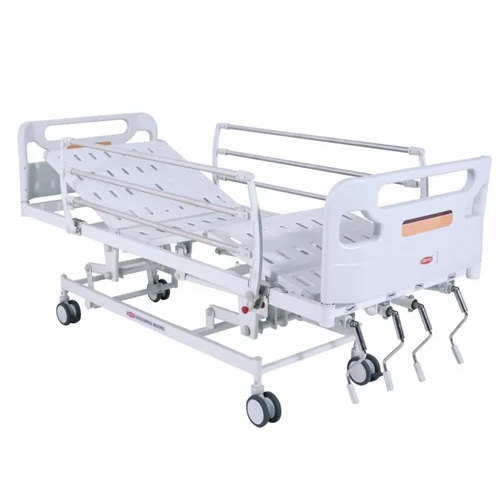

USI-963 ICU Bed Manual

ICU Bed Manual

Code : USI-963

Description :
  • PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  • Two Pieces Individual Detachable Collapsible Safety Side-Rails, Stainless Steel Pipe.
  • Framework made-up of M.S. Tubes.
  • 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  • Bed Mounted on 125mm (5”) Diagonal Locking Castors.
  • S.S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
  • Urine Bag Holder on Both Sides.
  • Calf Elevation Manually Operated.
  • Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
  • Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.) :
  • Overall Size: 2160L x 980W x 630 – 830H mm.
  • Angle of Back Section: 75°
  • Angle of Knee Section: 30°
  • Angle of Trendelenburg / Reverse Trendelenburg: 7° / 6°

Optional Accessories :
  • 4 Section Mattress (USI – 5001C)
Specifications :
Minimum Order Quantity10 Piece
MaterialMild steel
Bed Function5 function
Dimensions2200X1000 MM
ColorRAL GREY
BrandUNITED
ManufacturerUNITED SURGICAL INDUSTRIES

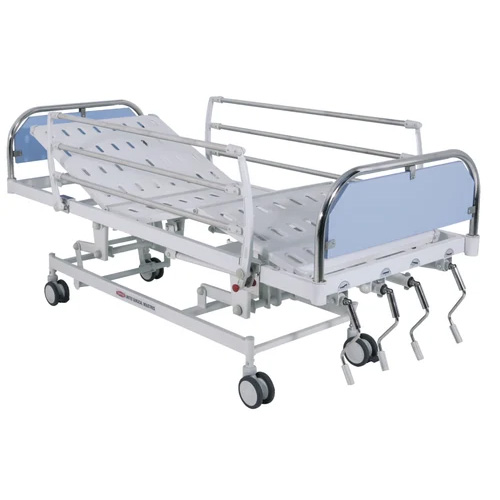

USI-1001 ICU Bed Manual

ICU Bed Manual

Code : USI-1001

Description :
  • S.S. Laminated Head and Foot Panels with Corner Buffer.
  • Two Pieces Individual Detachable Collapsible Safety Side-Rails, Stainless Steel Pipe.
  • Framework made-up of M.S. Tubes.
  • 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  • Bed Mounted on 125mm (5”) Diagonal Locking Castors.
  • S.S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
  • Urine Bag Holder on Both Sides.
  • Calf Elevation Manually Operated.
  • Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
  • Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.) :
  • Overall Size: 2160L x 980W x 630 – 830H mm.
  • Angle of Back Section: 75°
  • Angle of Knee Section: 30°
  • Angle of Trendelenburg / Reverse Trendelenburg: 7° / 6°

Optional Accessories :
  • 4 Section Mattress (USI – 5001C)
Specifications :
Minimum Order Quantity10 Piece
MaterialMild steel
Bed Function5 function
Dimensions2200X1000 MM
ColorRAL GREY
BrandUNITED
ManufacturerUNITED SURGICAL INDUSTRIES

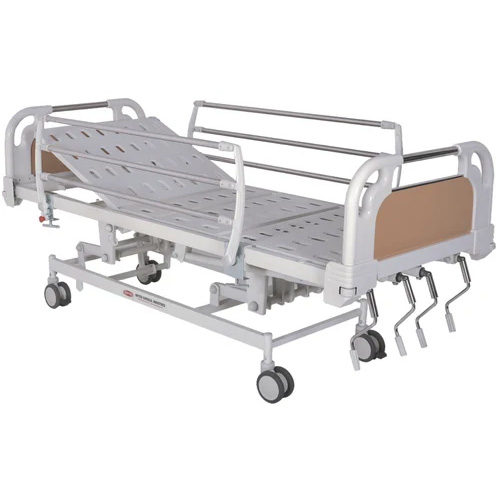

USI-963H ICU Bed Manual

ICU Bed Manual

Code : USI-963H

Description :
  • Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  • Two Pieces Individual Detachable Collapsible Safety Side-Rails, Stainless Steel Pipe.
  • Framework made-up of M.S. Tubes.
  • 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  • Bed Mounted on 125mm (5”) Diagonal Locking Castors.
  • S.S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
  • Urine Bag Holder on Both Sides.
  • Calf Elevation Manually Operated.
  • Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
  • Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.) :
  • Overall. Size: 2160L x 980W x 630 – 830 H mm.
  • Angle of Back Section: 75°
  • Angle of Knee Section: 30°
  • Angle of Trendelenburg / Reverse Trendelenburg: 7° / 6°

Optional Accessories :
  • 4 Section Mattress (USI – 5001C)
Specifications :
Minimum Order Quantity10 Piece
Bed Function5 function
No. Crank Handle4
Type of crank HandleFolding
IV Rod4 hooks
No. of Section4 section
Type of RailingStainless Steel
Type of PanelABS
Type of wheelsNon Rusting
